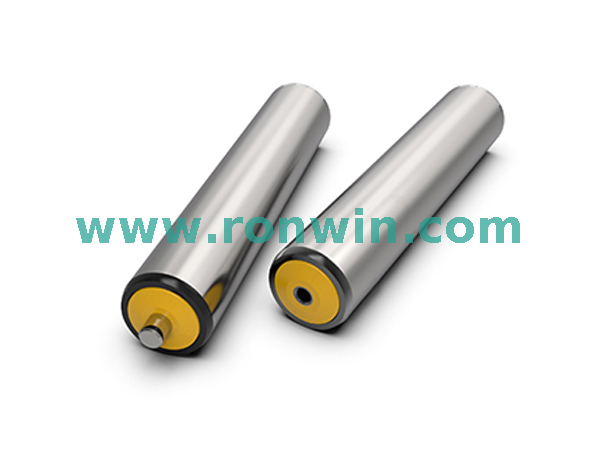

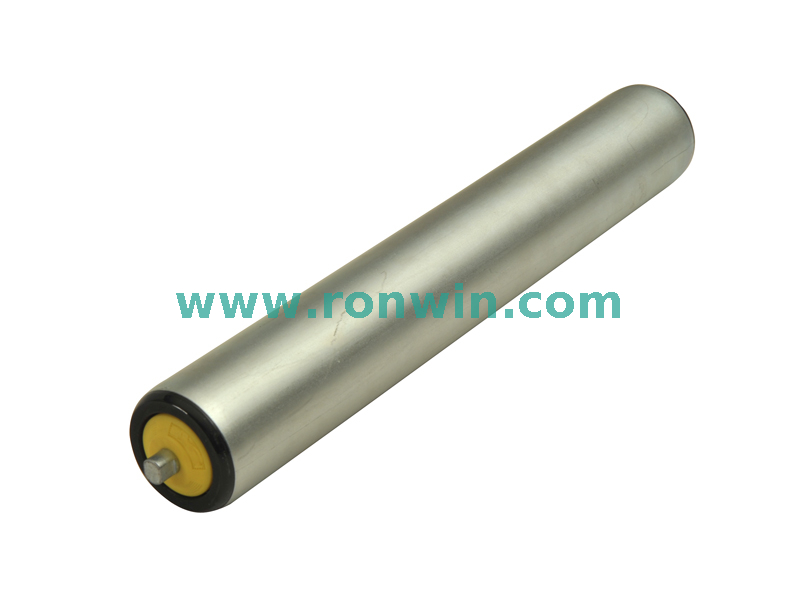

Series R1200 Universal Gravity Roller
Application area
Conveyor systems for indoor use, especially suited for cost-efficient implementation of gravity or push conveyors for light and medium goods with manual drive or on slopes. Widely applied in workshop, warehouse and logistic center. It can also be used in belt conveyors as either a belt support or a belt snubbing roller.
Smooth and high speed running
Precision ball bearing fix into polymer housing, provided smooth and quite running, maximum speed up to 100 m/min.
Dustproof and waterproof
The plastic end cap protect the bearing by providing excellent resistance to dust and splashed water.
Lateral loading
Standard configuration, the bearing housing with end cap and bearing is pressed into the tube and the tube ends are rounded, thereby allowing materials to be easily moved on from the side.
Low-noisy
The use of precision ball bearings, polyamide bearing housing and seals result in very quiet running.
Technical data
General technical data | |
Max. load capacity | 180 KGS |
Max. conveyor speed | 120 m/min |
Temperature range | −5°C to +40 °C |
Material | |
Tube | Carbon steel, stainless steel, aluminum, PVC |
Shaft | Antirust oil coated steel, Zinc-plated steel, Stainless steel |
Bearing housing | Polyamide, black |
End cap | Polypropylene, yellow/grey |
Bearing | Precision ball bearing |
Design versions | |
Surface treatment | Zinc-plated, chrome-plated |
Tube sleeves | PP sleeve, PU sleeve |
Lagging | Rubber, PU |
Spefications of series R1200
Dimension of series R1200 with spring loaded installation
Tube Material | D × T | Shaft | E | L |
Steel, stainless steel | 38×1.2 | Φ12 | E=W+8 | L=W+30 |
Steel, stainless steel, aluminum | 50×1.5 | Φ12/11 HEX | E=W+10 | L=W+32 |
Steel, stainless steel, aluminum | 60×2.0 | Φ12/11 HEX | E=W+10 | L=W+32 |
PVC | 50×2.5 | Φ12/11 HEX | E=W+10 | L=W+32 |
Dimensions of series R1200 with female threaded installation
Tube Material | D × T | Shaft | E | L |
Steel, stainless steel | 38×1.2 | Φ12 | E=W+8 | L=W+12 |
Steel, stainless steel, aluminum | 50×1.5 | Φ12/11 HEX | E=W+10 | L=W+12 |
Steel, stainless steel, aluminum | 60×2.0 | Φ12/11 HEX | E=W+10 | L=W+12 |
PVC | 50×2.5 | Φ12/11 HEX | E=W+10 | L=W+12 |
