R1800 Rollador de transporte de acero de gravedad de servicio pesado


Material:
Método de montaje:
Tratamiento de superficies:
Tipo de eje:
Estado de Disponibilidad:
Cantidad:
  • R1800
  • RONWIN
  • HS Code: 8431390000

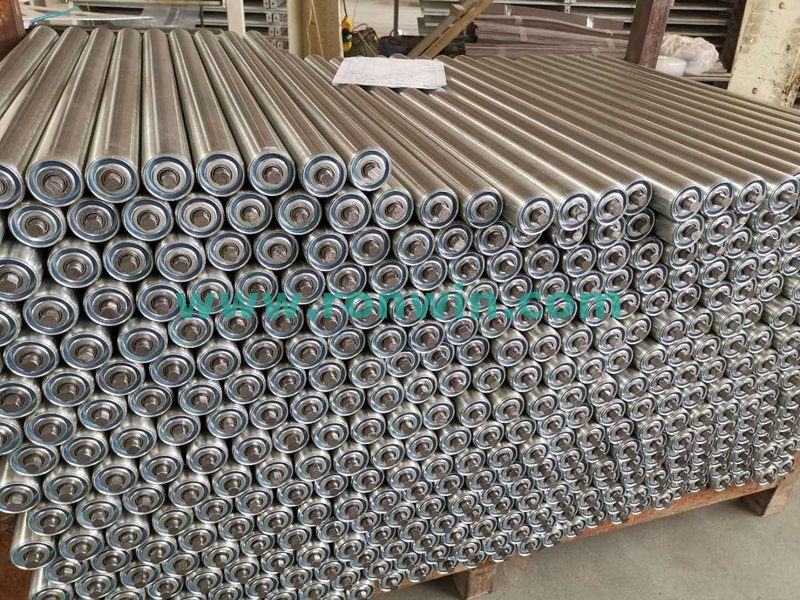

Series R1800 Heavy Duty Gravity Roller


Application area

R1800 series heavy duty gravity roller is suitable for unit goods handling such as transport of carboards, containers, barrels, tires or pallets. Suited for cost-efficient implementation of gravity or push conveyors. The roller has a large range diameter of pipe and shaft for transport of light, medium and heavy goods. Steel bearing housing for use in a very board temperature range from −30 to +80 °C.


High reliability

The precision ball bearing is secured in the steel pressed bearing housing. The bearing is tight and durable. Able to withstand greater axial forces than a plastic bearing unit.


Lateral loading

The bearing housing bearing is pressed into the tube and the tube ends are rounded, thereby allowing materials to be easily moved on from the side.


High load capacity

Full range diameter of roller tube and shaft, steel bearing housing ensure the roller is cable of being used in many arduous environment including pallet handling.


Technical data

General technical data


Max. load capacity

600 KGS

Max. conveyor speed

50 m/min

Temperature range

−30 to +80 °C

Material


Tube

Carbon steel, stainless steel, aluminum

Shaft

Antirust oil coated steel, Zinc-plated steel, Stainless steel

Bearing housing

Zinc-plated steel, stainless steel

Bearing

Precision ball bearing

Design versions


Surface treatment

Zinc-plated, chrome-plated

Tube sleeves

PP sleeve, PU sleeve

Lagging

Rubber, PU


Diagram of R1800 Heavy Duty Gravity Conveyor Roller


GR800 Galvanized Steel Heavy Duty Gravity Conveyor Roller

Dimension of series R1800 with spring loaded installation

Tube Material

D × T

Shaft

E

L

Steel, stainless steel, aluminum

25×1.0

Φ12

E=W+7

L=W+31

Steel, stainless steel, aluminum

32×1.2

Φ12

E=W+9

L=W+31

Steel, stainless steel, aluminum

38×1.2

Φ12

E=W+10

L=W+32

Steel, stainless steel, aluminum

50×1.5

Φ12

E=W+10

L=W+32

Steel, stainless steel, aluminum

60×2.0

Φ12/Φ15

E=W+10

L=W+32

Steel, stainless steel, aluminum

76×3.0

Φ20

E=W+10

L=W+40

Steel

80×3.0

Φ20

E=W+10

L=W+40

Steel

89×3.0

Φ20

E=W+10

L=W+40

Load capacity of series R1800 with loose installation

The load capacity chart shows the static load capacity of the roller for a uniformly distributed load refers to a temperature range of −30 to +80 °C.

Valid for the following shaft designs: spring-loaded shaft or flatted shaft.

R1800 conveyor roller loose mount load capacity

Dimensions of series R1800 with female threaded installation

Tube Material

D × T

Shaft

E

L

Steel, stainless steel, aluminum

25×1.0

Φ12

E=W+7

L=W+8

Steel, stainless steel, aluminum

32×1.2

Φ12

E=W+9

L=W+10

Steel, stainless steel, aluminum

38×1.2

Φ12

E=W+10

L=W+11

Steel, stainless steel, aluminum

50×1.5

Φ12

E=W+10

L=W+11

Steel, stainless steel, aluminum

60×2.0

Φ12/Φ15

E=W+10

L=W+11

Steel, stainless steel, aluminum

76×3.0

Φ20

E=W+10

L=W+12

Steel

80×3.0

Φ20

E=W+10

L=W+12

Steel

89×3.0

Φ20

E=W+10

L=W+12


Load capacity of series R1800 with screw-connected installation

The load capacity chart shows the static load capacity of the roller for a uniformly distributed load refers to a temperature range of −30 to +80 °C.

Valid for the following shaft designs: female thread or male thread.

R1800 conveyor roller thread mount load capacity
