FC
RONWIN

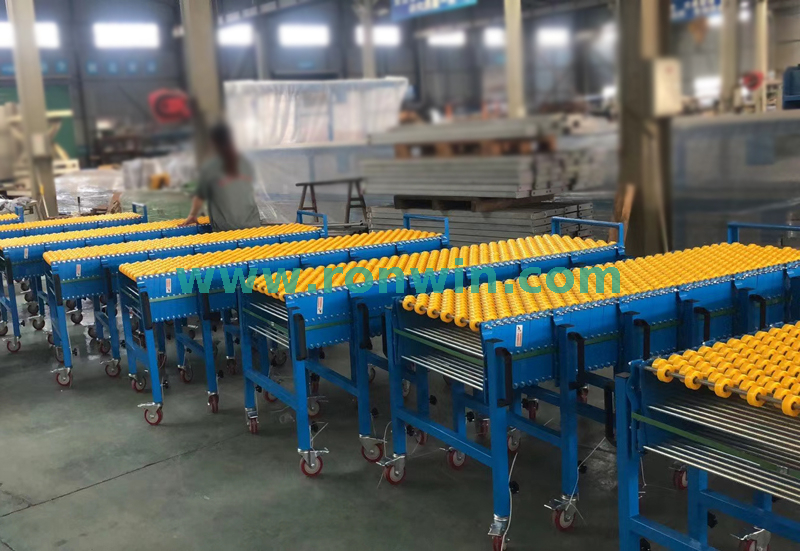

FC Series Flexible Expandable Plastic Skatewheels Conveyor
This gravity flexible expandable skatewheels conveyor is designed for handling small and medium-sized cartons and boxes. This conveyor is durable due to its steel construction. A single curve or composite curve remains integrated when it is laid out according to its complete expansion.
Conveying Surface
Conveying surfaces are done with plastic or steel wheels. We offer three standard widths of conveying surfaces: 450mm, 500mm, and 600mm. Other widths are available upon request.
Skatewheels
Yellow/blue/gray plastic skatewheels (Dia.48mm) or galvanized steel skatewheels (Dia.48.5mm) with special designed ball bearing is optional.
Specifications of FC Flexible Expandable Skatewheels Conveyor
| Model No. | Units | Length | Width | Height | Load/unit | Rollers/unit | Qty of Legs | Weight |
|---|---|---|---|---|---|---|---|---|
| FC-48-450×1 | 1 | 435-1235 | 450 | 800-1000 | 60 | 9 | 2 | 33 |
| FC-48-450×2 | 2 | 870-2470 | 3 | 53 | ||||
| FC-48-450×3 | 3 | 1305-3705 | 4 | 72 | ||||
| FC-48-450×4 | 4 | 1740-4940 | 5 | 92 | ||||
| FC-48-450×5 | 5 | 2175-6175 | 6 | 112 | ||||
| FC-48-450×6 | 6 | 2610-7410 | 7 | 133 | ||||
| FC-48-500×1 | 1 | 435-1235 | 500 | 800-1000 | 60 | 9 | 2 | 35 |
| FC-48-500×2 | 2 | 870-2470 | 3 | 54 | ||||
| FC-48-500×3 | 3 | 1305-3705 | 4 | 77 | ||||
| FC-48-500×4 | 4 | 1740-4940 | 5 | 94 | ||||
| FC-48-500×5 | 5 | 2175-6175 | 6 | 113 | ||||
| FC-48-500×6 | 6 | 2610-7410 | 7 | 134 | ||||
| FC-48-600×1 | 1 | 435-1235 | 600 | 800-1000 | 60 | 9 | 2 | 38 |
| FC-48-600×2 | 2 | 870-2470 | 3 | 60 | ||||
| FC-48-600×3 | 3 | 1305-3705 | 4 | 82 | ||||
| FC-48-600×4 | 4 | 1740-4940 | 5 | 112 | ||||
| FC-48-600×5 | 5 | 2175-6175 | 6 | 124 | ||||
| FC-48-600×6 | 6 | 2610-7410 | 7 | 142 | ||||
Model No. FC-48-500×4 Example
FC-series
48-skatewheel diameter
500-transportation surface width
×4-four units (the conveyor is connected unit by unit for required length).
Our flexible expandable conveyor is popular by some main express company in China like JD, SF and CAI NIAO.
